Hesco barrier,Hesco bastion,hesco bastion wall Flood Hesco Barrier solution





Instroduction-flood barrier

Military Barrier/bastion is made of  a collapsible welded wire mesh and used as a temporary to semi permanent dike or barrier against blast or smail. It can protection personnel, property or environment.

Specifications-Hesco barrier, Hesco bastion, Blast wall, flood barrier,storm barrier

1.Wire diameter: 4-5mm
2. Mesh size: 75x75mm
3. Panel size:  12 type size for any security protection, suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene, Color: Grey and Military Green, Sand color etc.
5. Finish: hot dipped galvanized, Galfan wire.

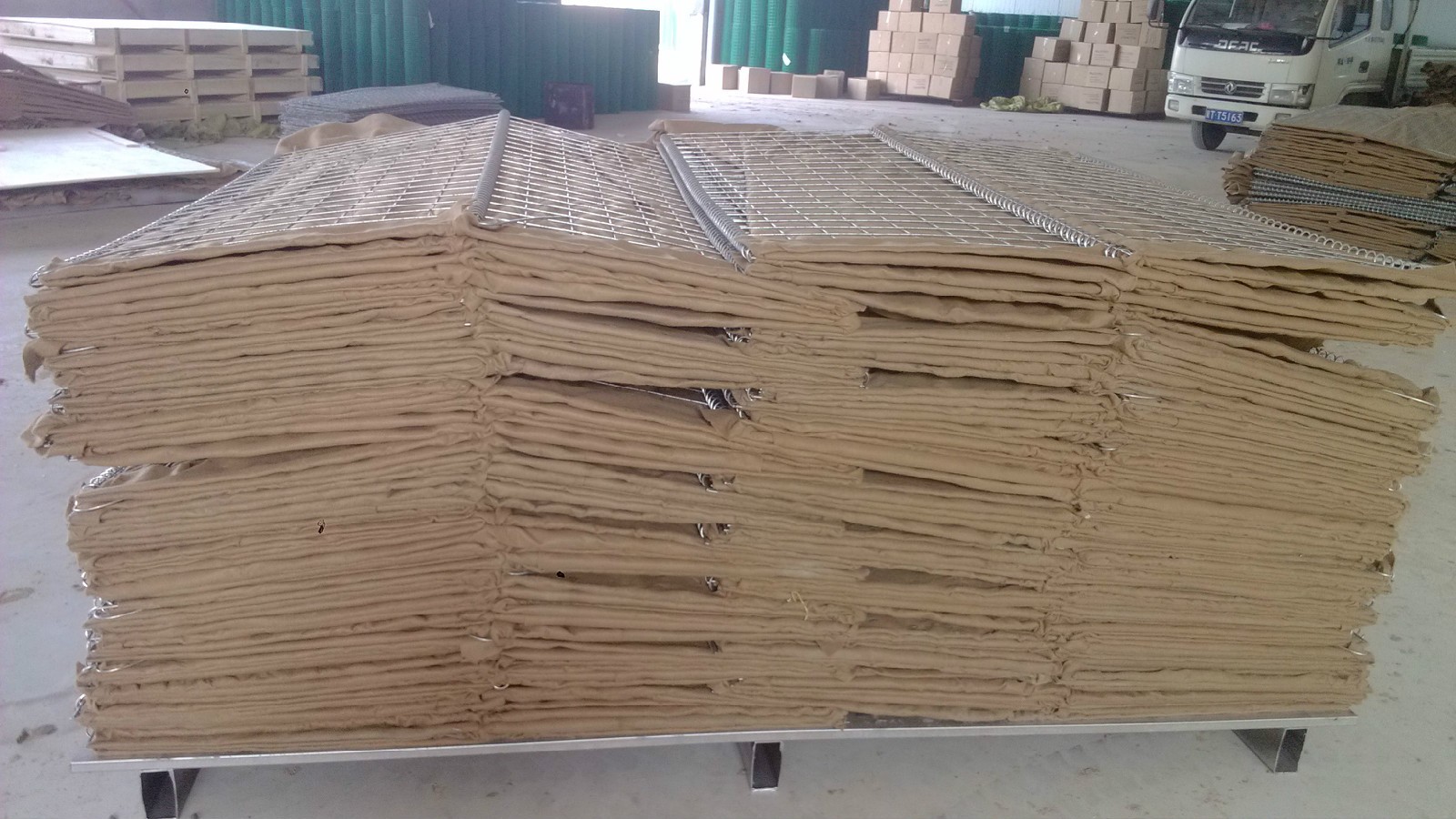

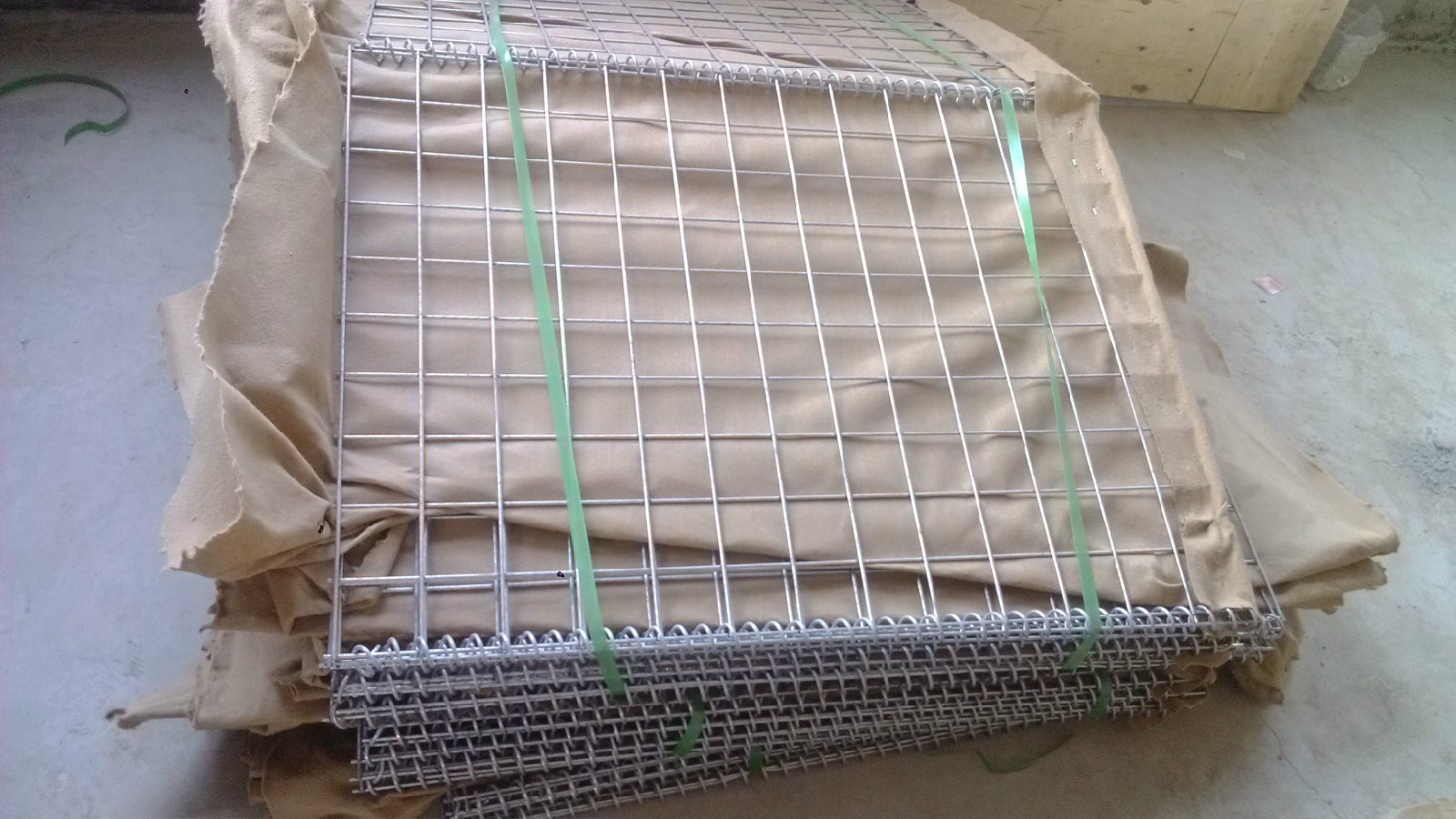

6. Packing: wrapped with shrink film or packed in pallet

Hesco barrier, Hesco bastion, Blast wall, Flood barrier, storm barrier

Product Item
Standards

Height

Width

Length

Cells

QG MIL 1

54’’(1.37m)

42’’(1.06m)

32’9’’(10m)

1x4,1x5cells

QG MIL 2

24’’(0.61m)

24’’(0.61m)

4’(1.22m)

2 cells

QG MIL 3

39’’(1.00m)

39’’(1.00m)

32’9’’(10m)

2x5 cells

QG MIL 4

39’’(1.00m)

60’’(1.52m)

32’9’’(10m)

2x5 cells

QG MIL 5

24’’(0.61m)

24’’(0.61m)

10’(3.05m)

5 cells

QG MIL 6

66’’(1.68m)

24’’(0.61m)

10’(3.05m)

5 cells

QG MIL 7

87’’(2.21m)

84’’(2.13m)

91’(27.74m)

2x4+1x5 cells

QG MIL 8

54’’(1.37m)

48’’(1.22m)

32’9’’(9.14m)

1x4+1x5 cells

QG MIL 9

 39'(1.00m)

30’’(0.76m)

30’(9.14m)

2x6 cells

QG MIL10

87’’(2.21m)

60’’(1.52m)

100’(30.50m)

4 x 5 cells

QG MIL 11

48’’(1.22m)

12’’(0.30m)

4’(1.22m)

4 cells

QG MIL 12

84’’(2.13m)

42’’(1.06m)

108’(33m)

6 x 5 cells

QG MIL 19

108’’(2.74m)

42’’(1.06m)

10’5’’(3.18m)

3 cells
